The future of Mosaic Production
A typical mosaic project for floors, plazas, or pools has 100,000+ tiles—some even exceed 1.2 million tiles. Traditional manual assembly is slow and labor-intensive, with skilled workers placing around 10,000 tiles/day. Our robotic solutions automate this process, achieving speeds of 3,600 tiles/hour and beyond.

System Components

A. Mosaic Pick & Mount Robot

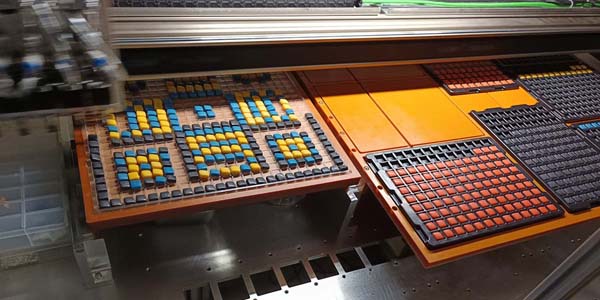

  • High-speed Cartesian robots, Picks tiles from feeders and places them onto mosaic pallets.
  • Optimized for small tiles. handling 3x3mm to 25x25mm square tiles and other shapes.
  • Precision. placement with millimeter accuracy. 0.5mm gap or even smaller.
  • Up to 3,600 tiles/hour (faster models available).
  • Rotation pattern.
  • Computer vision supported.
  • Scalable. we can build robot of any size.

B. Tile Feeding System

  • Provide a continues tile supplying to Pick & Mount Robot
  • Type of feeding system：

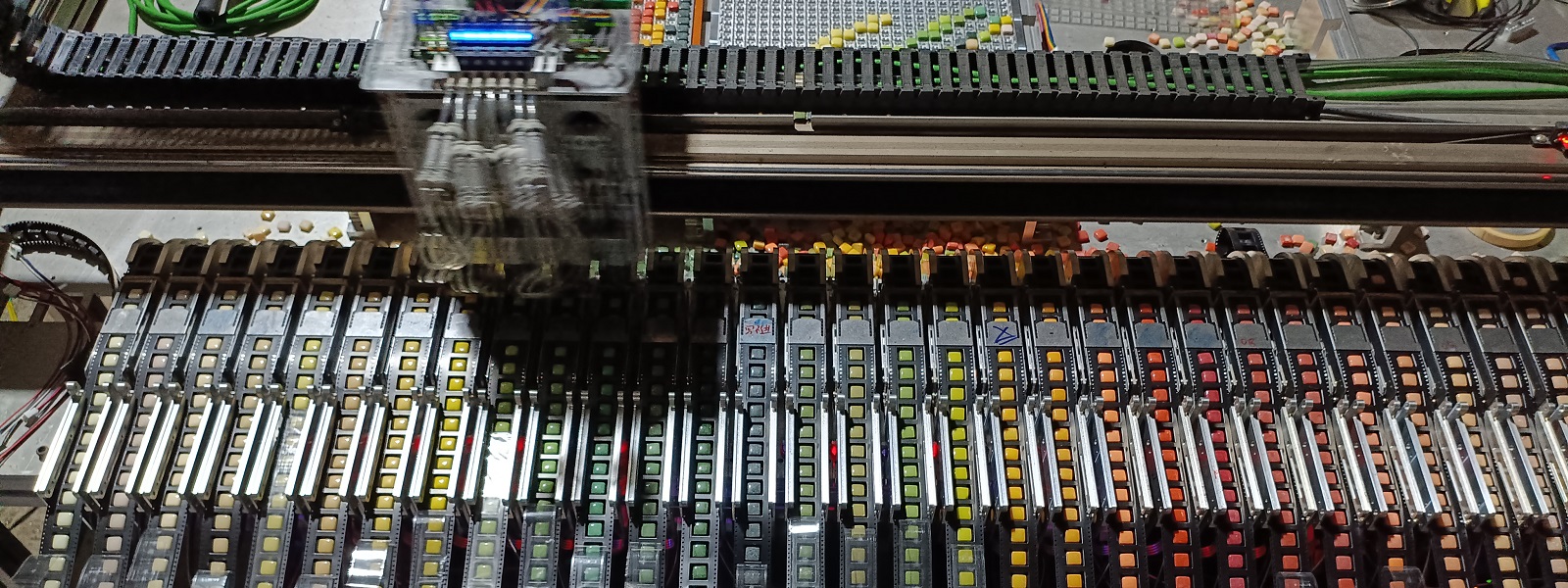

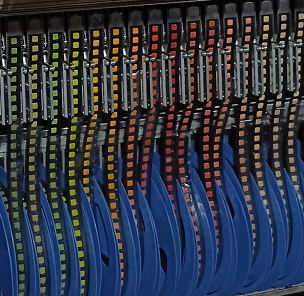

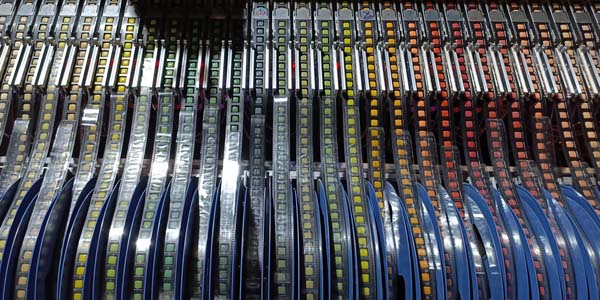

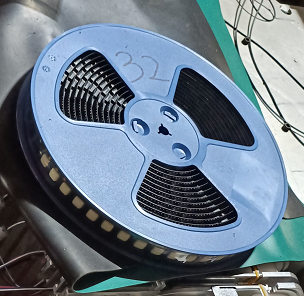

    1. Tape Feeder Group. It contains 24 to 96 tape feeders. Each carrier tape can carry 500 to 1000 tiles.
    2. Feeder Tray. It is economic and easy to use, but need additional labor.

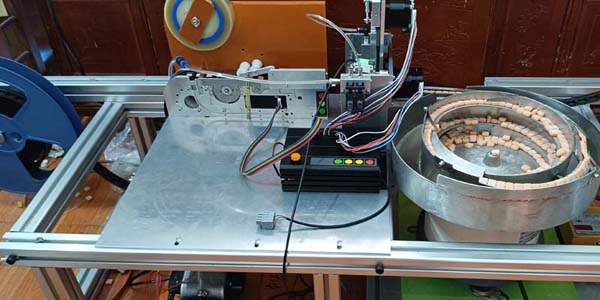

    3. Vibration Disc.
    4. Others.

Standard Workflow

  1. Import tile sample to design software.
  2. Design mosaic and Robot command data.

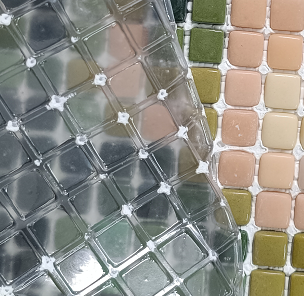

  3. Tile Preparation, fill tiles into carrier tape or tray. keep them in a storage area.

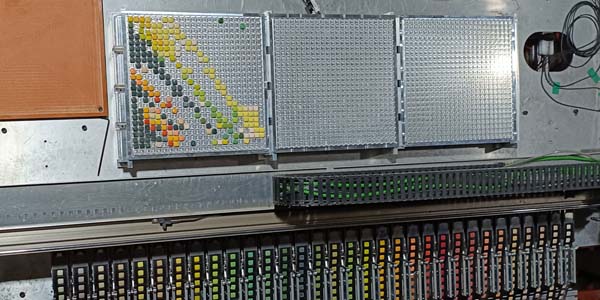

  4. Load tile tape to feeders, or Mount tile tray to pallet. The design tool will tell you how many tiles you need to use.

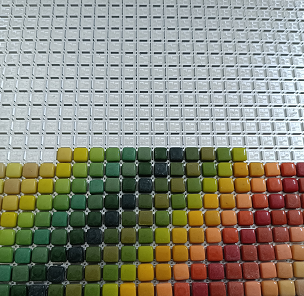

  5. Mount a empty receiver pallet to the robot.
  6. Open robot console and load the command data.

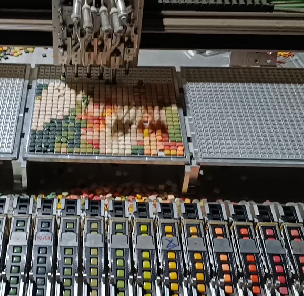

  7. Assembly: Let robot build your mosaic, it will notify you if a pallet are ready.
  8. Finalizing: Transfer completed pallets to workbench. finish gluing and packaging.

FAQ

Delivery & Logistics

  • Production Time: 45 days after order confirmation.
  • Export Port: Guangzhou, China.
  • Weight: 300 to 600 kg.
  • Package Dimension: 1200mm x 2400mm x 1000mm

Mosaic Design Tool

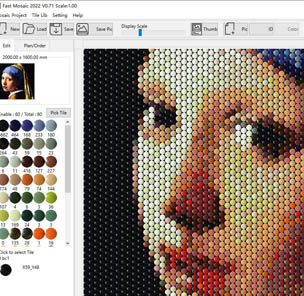

  • Fast Mosaic. Our major design tool, quick and user friendly.
  • Tile Mosaic Maker. Complicate but it contains many shape and patterns.
  • Tile Mosaic Render for website.

Support & Warranty

  • Warranty: 2 years warranty, lifetime repair service.
  • Tech Support: Remote diagnostics, onsite assistance.
  • Training: Video tutorials, onsite education.
  • Languages: English & Chinese.

Contact us to order your custom robotic mosaic assembly system!
